Lately, we've been seeing a huge bump in demand for Composite Material Welding. This trend is largely thanks to tech advances across industries like auto, aerospace, and even consumer gadgets. If you look at the numbers, a 2021 report from MarketsandMarkets suggests that the global market for composite materials could hit around $138.7 billion by 2025, growing at about 9.6% annually. As someone who's been in the ultrasonic Plastic Welding game for over two decades,Shenzhen Chengguan Intelligent Ultrasonic Equipment Co., Ltd. really knows their stuff. They focus on crafting cutting-edge ultrasonic welding machines designed specifically to tackle the tricky job of working with composite materials. Their gear helps make bonding faster, stronger, and more reliable—definitely a game-changer for manufacturers wanting to tap into the benefits of composites. In this blog, we'll dive into the basics of welding techniques that are especially relevant for composites, sharing some tips and insights that can help industry folks fine-tune their production processes.
Basics of Composite Materials: Properties and Applications
Composite materials are basically engineered by combining two or more different materials to get some really improved properties—stuff that’s way better than what each one could do on its own. Usually, they mix the lightweight feel of polymers with the strength of materials like carbon fiber or fiberglass. That combo makes them perfect for a bunch of different industries. You’ll see them heavily used in aerospace, cars, and even construction because they offer a high strength-to-weight ratio, resist corrosion, and stay stable under heat.
Now, when you’re working with these composites, it’s super important to keep their unique qualities in mind during welding. Since each type might have different thermal properties and melting points, you’ll need to choose the right technique—whether it’s adhesive bonding, thermoplastic welding, or ultrasonic welding.
**Quick tip:** Always do a compatibility check on the materials before you start welding. This helps you pick the right method and avoid surprises later. Also, doing some pre-weld tests can be a big help—kind of like a trial run—to see how the materials will handle heat, which leads to better bonding and a stronger final product.
Understanding the Fundamentals of Composite Material Welding Techniques
| Material Type | Properties | Common Applications | Welding Techniques |
| Carbon Fiber Reinforced Polymer (CFRP) | High strength-to-weight ratio, corrosion resistant | Aerospace, automotive, sports equipment | Laser welding, adhesive bonding |
| Glass Fiber Reinforced Polymer (GFRP) | Good tensile strength, lightweight | Construction, marine applications | Thermal welding, mechanical fastening |
| Kevlar Reinforced Polymer | High impact resistance, lightweight | Body armor, safety equipment | Ultrasonic welding, adhesive bonding |
| Metal Matrix Composites (MMCs) | Enhanced thermal properties, improved stiffness | Aerospace, automotive components | Friction stir welding, conventional welding |
Common Welding Techniques for Composite Materials
When it comes to composite materials—those amazing stuff known for their crazy good strength-to-weight ratio—they actually need some pretty specific welding techniques to stay solid and reliable. One of the most popular methods that everyone’s talking about, especially in aerospace circles, is adhesive bonding. According to a report from the American Institute of Aeronautics and Astronautics, nearly half of all composite structures in space and airplane tech are built with adhesives because they spread out loads evenly across the joint, helping to prevent cracks and weak spots. Pretty clever, right?
Then, there’s ultrasonic welding, which has become a real go-to in the automotive industry. Since lightweight materials are a big deal for saving fuel, this method’s been gaining ground. A study by the Society of Automotive Engineers points out that parts tied together with ultrasonic welding tend to have less residual stress and better resistance to fatigue than the more traditional methods. That basically means vehicle parts last longer and, on top of that, help cut down weight—huge in car design these days.
And let’s not forget laser welding. This one’s a real game-changer for super precise work. Its ability to make clean, narrow welds with hardly any heat distortion makes it perfect for complicated shapes, like in electronics or custom industrial pieces. Market research from Grand View Research says that laser welding for composites is gonna grow at over 10% a year for the next five years—talk about a rising star in manufacturing! All in all, these methods really showcase how advanced and versatile modern tech has become in handling composites.
Common Welding Techniques for Composite Materials
Important Considerations for Joint Design in Composite Welding
When you're working on designing joints for welding composites, there are a few key things you really want to keep in mind to make sure the final product holds up and performs well. First off, the materials you're joining need to be compatible. Different composite materials tend to expand and contract at different rates when heated or cooled, which can cause stress and possibly lead to problems like cracking or delamination. So, picking the right materials and matching them carefully is super important to avoid those issues.
Another thing to consider is the welding method you're using. Whether it's laser welding, ultrasonic, or resistance welding — each has its own pros and cons. The trick is to pick the technique that fits your specific application: think about the kind of load the joint will have to handle and the environmental conditions it’s going to face. And don't forget about the shape of the joint itself. Things like how wide it is, the overlap, or the taper — these little details can really make a difference in how strong and reliable the weld ultimately turns out. If you keep these points in mind, you'll be able to design joints that actually improve the overall performance of your composite structures.
Tips for Achieving Successful Welds in Composite Materials
When you're working with welding composite materials, the key is really understanding their unique traits. These materials can act pretty differently when you heat and press them—so, using the right techniques and taking proper precautions is a must. A good rule of thumb is to always check and follow the manufacturer’s guidelines for things like temperature and welding speed because, honestly, it can vary a lot depending on the specific composite you're dealing with.
Another thing that’s super important is preparing the surfaces properly before you start welding. Make sure to clean them thoroughly — no dust, oils, or residues that might mess up the weld. Sometimes, roughing up the surfaces with a bit of sanding can help a lot, because it gives the bond more grip and results in a stronger weld.
And hey, don’t forget to use the right tools too. Investing in specialized equipment made for composites can really make a difference when it comes to consistency and precision. When you’re actually welding, a steady hand and controlled movements are your friends — they help create smooth, even seams and cut down on defects. Ultimately, all these little details matter if you want a strong, reliable final product.
Challenges and Solutions in Composite Material Welding Processes
Welding composite materials isn’t exactly a walk in the park — it comes with its own set of challenges. You really need innovative techniques to make sure the final product holds up well and performs as expected. As advanced materials like high-temperature composites become more common, the industry’s got to deal with issues like thermal stability and keeping things lightweight. Fortunately, recent breakthroughs in welding tech are tackling these problems head-on. They’re not just making welding more effective; they’re also helping make manufacturing a bit greener.
Take ultrasonic welding, for example — it’s pretty much a game-changer for thermoplastic composites. This is especially true in fields like aerospace, where precision and weight savings are super important. Plus, with the use of smart algorithms, like grey-fuzzy logic, engineers can optimize welding parameters more efficiently.
It’s exciting to see how these new techs and material science innovations are paving the way for lighter, tougher parts that also meet modern sustainability goals — especially in aviation and similar sectors.
Future Trends in Composite Welding Technologies and Techniques
Lately, there's been some pretty exciting progress in composite welding tech, and honestly, it’s set to shake up how industries do manufacturing. For example, additive manufacturing—or 3D printing, basically—now uses polymer composites enhanced with nanoparticles and short fibers, which makes them stronger and even opens up new functionalities. The scene for multi-material 3D printing is moving fast, so there’s a real need for smarter welding methods that can smoothly join different materials without losing strength or performance.
One big trend I’ve noticed is how folks are improving welding processes with fancy new techniques. Take gradient-based shape optimization for induction coils used in welding thermoplastic composites—this approach uses something called the level-set method, which helps to make induction welding more efficient and reliable. On top of that, high-power lasers for cutting, welding, and drilling are becoming more popular—they’re offering better precision and making operations a lot smoother. Interestingly, the global market for welding machinery, which was valued at around $15.5 billion in 2024, is expected to grow to about $22.3 billion by 2030, with a pretty steady annual growth rate of about 6.3%. All this points to industries increasingly adopting these advanced welding techs to cater to a wide range of needs—from aerospace to healthcare—and it’s an exciting time to be in this field.

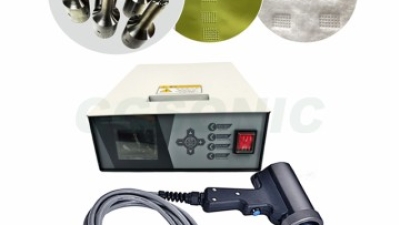

Mastering Precision: The Ultimate Guide to Ultrasonic Handheld Spot Welding Systems for Modern Manufacturing
In the rapidly evolving landscape of modern manufacturing, ultrasonic handheld spot welding systems are transforming the way products are engineered and assembled. These innovative tools offer high welding quality, delivering joints that are not only structurally sound but also aesthetically pleasing. According to recent industry reports, the weld strength achieved by these systems can closely match the raw material's integrity, ensuring durability and reliability in the final product. This resilience against external forces makes ultrasonic welding a preferred choice for manufacturers looking to maintain product excellence.
Moreover, the efficiency of ultrasonic welding systems is noteworthy, with processes typically completed in under one second. This rapid turnaround significantly boosts production rates, allowing companies to meet market demands without sacrificing quality. The absence of additional heat sources or chemical adhesives also contributes to energy savings and reduces environmental impact—factors that are increasingly prioritized in today's eco-conscious manufacturing sectors. As cited in a study by the International Welding Institute, adopting such advanced welding technologies can lead to a 30% reduction in energy consumption, making them not only a practical choice but also an environmentally responsible one.
Additionally, these systems are designed with user convenience in mind. Their lightweight and compact nature enhances portability, making them easy to operate in various settings. The modular integrated circuits enable flexible power output and the quick interchangeability of ultrasonic welding heads tailored to diverse rivet sizes and welding requirements. Such versatility means that manufacturers can efficiently handle welding tasks across a broad spectrum of materials, from thermoplastics like polyethylene and polypropylene to intricate fabric and film applications, thus keeping pace with the diverse needs of an ever-changing market.
FAQS
: Composite materials are engineered from two or more constituent materials to create enhanced properties, such as a combination of lightweight characteristics of polymers and the strength of materials like carbon fiber or fiberglass.
Composite materials are commonly used in industries such as aerospace, automotive, and construction due to their high strength-to-weight ratio, corrosion resistance, and thermal stability.
It is crucial to consider the unique properties of composite materials, such as their thermal properties and melting points, which may require specific welding techniques.
Recommended welding techniques for composite materials include adhesive bonding, thermoplastic welding, and ultrasonic welding, depending on the material compatibility.
Important factors in joint design include material compatibility, choice of welding technique, and joint geometry, all of which influence the integrity and performance of the final product.
Different composites have varying thermal expansion rates, which can lead to stress concentrations at the joint during heating and cooling cycles, potentially causing delamination or cracking.
One emerging trend is the rise of multi-material additive manufacturing, which emphasizes the development of sophisticated welding techniques to integrate different materials without compromising strength.
The global welding machinery market is expected to grow from $15.5 billion in 2024 to $22.3 billion by 2030, reflecting a compound annual growth rate (CAGR) of 6.3%.
Advanced methods such as gradient-based shape optimization for induction coils and high-power laser applications are being developed to improve the efficiency and effectiveness of composite welding operations.
Considerations for joint geometry include joint width, overlap, and taper, as these factors can significantly influence the strength and reliability of the weld.
Conclusion
When it comes to manufacturing, really understanding how to weld composite materials is a big deal if you want your products to be tough and long-lasting. These materials are pretty awesome—lightweight but super strong—which is why they need specialized welding techniques that suit their unique features and uses. One popular method is ultrasonic welding, which uses high-frequency vibrations to bond the materials without needing extra glue or anything. That’s actually why a lot of industries, like those served by Shenzhen Chengguan Intelligent Ultrasonic Equipment Co., Ltd., prefer it—it’s clean, efficient, and reliable.
Getting the joint design right is a total must because it’s what keeps the final product solid and performs well. Things like whether the materials play nicely together and how the joint is shaped really matter when it comes to making a weld that can handle the stresses. Sure, welding composites isn’t always smooth sailing—there are issues like delamination or heat sensitivity that can pop up. But, thankfully, innovative solutions are coming out all the time. As the industry keeps pushing forward, we can expect to see improvements in welding tech and techniques, making it even easier to get the most out of composite materials across different sectors.
