Choosing a handheld Ultrasonic Welding machine? It's not just about comparing wattage and price. The right one has to fit the material, the joint geometry, your production pace, and how the operator controls it. A shiny-looking weld can still be weak, after all.

Grand View Research says the global ultrasonic Welding Equipment market keeps growing, pushed by automotive, electronics, medical devices, and consumer products. MarketsandMarkets points to automation, lightweight materials, and cleaner assembly as big growth drivers too. That makes handheld units pretty appealing for repairs, prototypes, short runs, and joints that are hard to reach. But a growing market doesn't mean every machine is a good fit. It just means there are more options to sort through.

Dr. David Grewell, an ultrasonic welding specialist and professor at Iowa State University, calls the technology “a solid-state process.” That idea matters. You want stable amplitude, controlled pressure, and repeatable vibration. And in real trials, tiny things—like horn shape or surface contamination—can change weld strength. So check frequency, power, trigger control, cooling, tooling compatibility, and service support. Don't rely on specs alone.

Here are seven tips that give you a practical framework for evaluating a Handheld Ultrasonic Welding Machine. They're about real operating conditions, not flashy brochures. One thing worth thinking about: the cheapest machine can end up being the most expensive one once inconsistent welds, rejected parts, and operator fatigue start adding up. So reliable testing is still a must.

7 Tips for Choosing a Handheld Ultrasonic Welding Machine

Define the Application: Choose 20, 30, 35, or 40 kHz for the Material

Choosing frequency begins with the material, joint design, and required weld depth. A 2024 MarketsandMarkets industry report identifies plastics and automotive components as major ultrasonic welding applications. These parts often vary sharply in thickness and stiffness. A Handheld Ultrasonic Spot Welding Machine operating at 20 kHz delivers stronger mechanical movement and deeper energy transfer. It suits thick thermoplastics, multilayer fabrics, and rigid assemblies.

Use 30 kHz for a balanced choice. It offers moderate amplitude, manageable heat, and better control on medium-sized parts. For thin films, coated textiles, and small plastic housings, 35 or 40 kHz usually reduces excessive vibration. Higher frequency can create a cleaner spot, but it may not penetrate dense sections effectively. Tiny details matter.

Material testing remains essential. The American Society for Testing and Materials emphasizes repeatable conditioning when evaluating plastic joints, including temperature and humidity control. A practical trial should record horn pressure, weld time, amplitude, and visible flash. A 2023 technical review in Ultrasonics also links weld quality to energy delivery and interface temperature, not frequency alone. That warning is easy to overlook. A 40 kHz setting can still damage a soft film when pressure is excessive. Conversely, 20 kHz may leave a weak bond in a thin component. I would test three frequencies on identical samples, then inspect peel strength and cross-sections. Experience helps, but assumptions sometimes fail.

7 Tips for Choosing a Handheld Ultrasonic Welding Machine - Define the Application: Choose 20, 30, 35, or 40 kHz for the Material

Frequency Typical Application Profile Suitable Materials Typical Part Size and Joint Conditions Main Advantages Important Limitations Selection Guidance
20 kHz High-power welding for demanding assemblies and larger plastic components. Common thermoplastics such as ABS, PP, PE, PS, PVC, PC, PA, and blends, provided the material pair is compatible. Large parts, longer weld paths, thicker sections, and joints that require higher amplitude and energy input. Higher available power and stronger vibration transfer; suitable for robust fixtures and difficult-to-weld assemblies. Greater vibration can mark delicate surfaces or damage small features. It may be unnecessarily aggressive for tiny precision parts. Choose 20 kHz when part size, weld length, or assembly strength requires maximum power.
30 kHz General-purpose welding for medium-sized components and a broad range of production work. ABS, PC/ABS, PP, PS, SAN, PMMA, PC, and other compatible rigid or semi-rigid thermoplastics. Medium part sizes, moderate weld distances, housings, covers, fittings, and assemblies with balanced strength and appearance requirements. Good compromise between power, weld control, tool size, and surface appearance. May not provide enough energy for very large parts or very long weld seams compared with a 20 kHz system. Choose 30 kHz for a versatile handheld machine when the application is not extremely large or delicate.
35 kHz Controlled welding for smaller components and applications where surface quality is important. Compatible engineering and commodity thermoplastics, including ABS, PP, PC, PS, and selected filled grades. Small-to-medium parts, shorter weld paths, thin walls, and assemblies with relatively fine details. Lower tool mass and more controlled energy delivery than lower-frequency systems; useful for compact tooling. Power capacity is generally lower than 20 kHz equipment, so large parts may require longer cycles or may not be suitable. Choose 35 kHz when the part is compact and the process needs a balance of precision and usable power.
40 kHz Precision welding for small, delicate, or visually sensitive plastic assemblies. Compatible thermoplastics used in small housings, medical-related components, electronics parts, and miniature assemblies. Small parts, short weld paths, thin sections, fine contours, and applications with limited contact areas. Fine vibration control, compact horns, and reduced risk of excessive mechanical disturbance when properly tuned. Lower power and penetration capability make it unsuitable for large parts, thick sections, or long weld seams. Choose 40 kHz for small precision parts where appearance, dimensional control, and low disturbance are priorities.
Material compatibility Assessment of whether the two plastic components can form a reliable molecular bond. Best results usually occur with the same thermoplastic or with materials having compatible melting behavior and similar processing characteristics. Consider resin type, melt temperature, moisture sensitivity, fillers, pigments, and recycled content before selecting frequency. Improves weld strength, consistency, and process stability more than frequency changes alone. Ultrasonic welding is generally unsuitable for thermosets and many elastomers that do not melt and flow under the process conditions. Verify resin compatibility and conduct sample welding before final machine selection.
Joint design Evaluation of the joint geometry that transfers ultrasonic energy and supports molten material flow. Thermoplastics with an energy director, shear joint, stepped joint, or another design suitable for ultrasonic welding. Short energy paths, adequate support beneath the weld, consistent contact, and sufficient wall thickness are preferred. A well-designed joint reduces cycle time and required amplitude while improving repeatability. A flat butt joint, uneven gap, unsupported wall, or excessive weld area can produce weak or inconsistent results. Optimize the joint and fixture before increasing amplitude or selecting a higher-power machine.
Process validation Confirmation that the selected frequency, horn, amplitude, pressure, and cycle settings meet the product requirements. All thermoplastic applications should be validated with production-grade material and representative parts. Measure weld strength, leak tightness when required, appearance, dimensional change, cycle time, and long-term performance. Prevents relying on frequency alone and helps establish a repeatable operating window. Results can change with horn geometry, fixture stiffness, part tolerances, resin moisture, and material additives. Run trials with the final part, horn, fixture, and material lot before approving the equipment.

Note: Frequency selection is application-dependent. The horn design, amplitude range, actuator force, fixture support, joint geometry, material compatibility, and required weld strength must be evaluated together.

Size Generator Power: Compare Typical 500–2,000 W Output Ratings

Generator power is a practical starting point when choosing a handheld ultrasonic welding machine. Typical units range from 500 to 2,000 watts. A 500-watt generator may suit thin plastic parts, small repairs, and short welding cycles. Larger joints usually need 1,000 watts or more.

Do not treat the rating as actual welding power. It describes electrical capacity, while welding performance also depends on frequency, horn design, pressure, and material flow.

In workshop testing, I have seen a lower-rated unit outperform a larger one on a well-matched joint. Fit matters.

Check the machine’s duty cycle before comparing wattage. A 2,000-watt generator can handle stronger demand, but it may be heavier and less comfortable during repeated hand use. Hold the tool for several minutes, if possible. Heat in the handle can expose a poor design quickly.

Ask for measured output data, not only a maximum rating. Test the same material, joint shape, and weld time used in your production area.

Polypropylene, ABS, and layered films can react very differently. Keep a small margin above the expected load, perhaps 15 to 25 percent, because voltage variation and operator pressure affect results.

I would not choose solely by wattage. That shortcut has caused uneven seams in real trials.

Record weld strength, cycle time, and generator temperature before making the final decision.

Set Amplitude Correctly: Keep Horn Vibration Within About 10–60 μm

7 Tips for Choosing a Handheld Ultrasonic Welding Machine

Set amplitude carefully. Horn vibration should usually remain within about 10–60 μm. This range is a practical starting point, not a universal rule. Thin plastic parts may need lower amplitude, while thicker joints can require more energy. Check the horn design, operating frequency, and material before adjusting the control. Amplitude is not the same as electrical power.

Tip: Begin near the lower setting. Make short test welds and inspect the joint under consistent lighting. Look for incomplete bonding, whitening, flash, or surface marks. A clean weld should hold firmly without excessive melting. Use calibrated amplitude measurement equipment when possible. Displayed settings can differ from actual horn movement.

Tip: Change one setting at a time. Record amplitude, pressure, weld time, and part temperature. I once increased amplitude to solve a weak joint, but the horn began marking the surface. The better correction was slightly longer weld time and steadier pressure. That result was useful, but not perfect; material batches can behave differently. Stop testing if the horn heats unusually, vibrates irregularly, or produces sharp noise. Let the tool cool, inspect its contact face, and confirm alignment before continuing. Small changes matter.

Match Horn Geometry: Maintain Joint Tolerances Near ±0.05 mm

When choosing a Handheld Ultrasonic Welder, inspect the horn before comparing power ratings. The horn must mirror the joint’s shape, width, and energy-directing features. A flat tip on a narrow rib can crush the edge. A mismatched radius may create weak weld zones or visible flash. Keep the mating joint near ±0.05 mm where the design and material allow it. This tolerance supports repeatable contact.

Ask for a horn drawing with working length, tip radius, contact area, and alignment datum. Measure molded parts with a calibrated optical comparator or coordinate measuring machine. Check the horn’s parallelism after installation, not only on the bench. Even a 0.05 mm offset can shift pressure toward one side of a thin wall. The result may look welded while its peel strength varies. Small details matter.

Run short trials across the real temperature range of your parts. Record amplitude, weld time, pressure, collapse distance, and joint appearance. A narrow horn may need less amplitude than expected. Excessive energy can mark the surface or damage inserts. Measure twice. Do not accept the first successful sample. Common mistake. Review ten or more parts, then recheck dimensions and strength. Tool geometry is only one variable, but it is often overlooked.

Check Welding Speed: Evaluate Typical Cycle Times of 0.1–1.0 Seconds

When choosing a handheld ultrasonic welding machine, check its typical cycle time under your actual assembly conditions. A stated 0.1–1.0-second range is useful, but it is not a production guarantee. Thin plastic parts may weld quickly, while thicker joints need longer energy transfer. Ask for test data using your material, joint design, and fixture. Measure from trigger activation to horn release. Keep loading and unloading separate.

During a trial, run at least 30 consecutive parts. Test it repeatedly. Record each cycle with a simple timer or machine log. Look for stable results, not only the fastest reading. A 0.18-second weld may become 0.45 seconds after the horn heats up. Operator hand position, clamping pressure, and part alignment can also change the result. Small delays matter on a line producing thousands of assemblies daily. Watch the seam under magnification for whitening, flash, gaps, or weak bonding.

Compare cycle speed with weld quality and operator fatigue. The shortest cycle is not always the safest choice. Excessive amplitude may damage delicate housings, even when output looks impressive. I would request repeated trials at low, middle, and high settings before buying. Include cooling pauses if the equipment needs them. Do not guess. A realistic capacity calculation should include rejects, repositioning, and occasional rework. If timing comes only from laboratory tests, treat it as a starting point, not proof of factory performance.

Verify Process Controls: Monitor Energy, Force, Amplitude, and Weld Time

A reliable Handheld Spot Welder should provide clear process controls, not just strong-looking welds. During machine trials, check whether energy, force, amplitude, and weld time are visible and adjustable. These values explain why a joint succeeds or fails. A bright display helps, but stable readings matter more.

Start with energy monitoring. Record the energy used for each sample, then compare it with weld strength and appearance. Excess energy may burn plastic or damage thin metal. Low energy can leave weak, cold joints. Weld time also deserves attention. Even a small timing change can alter heat distribution. Use a calibrated timer when possible, and keep material thickness consistent.

Force control should respond smoothly when the horn contacts the workpiece. Too much force can restrict vibration, while too little force may cause slipping and uneven bonding. Amplitude needs practical testing, not blind adjustment. Inspect the joint, listen for unusual vibration, and measure results from several samples. Operators should keep simple records beside the machine. Include settings, material batch, surface condition, and inspection results. This habit often reveals changes that memory misses. I once treated a clean-looking weld as acceptable, but later testing showed poor internal bonding. Visual inspection alone is not enough. Allow time for calibration checks, because neglected sensors can create false confidence.

Review Operator Safety: Apply ISO 12100 Risk Assessment Principles

When choosing a handheld Ultrasonic Card Welding Machine, review operator safety before comparing output speed. ISO 12100 requires hazards to be identified, estimated, and reduced through a documented risk assessment. Watch the operator’s hands during loading, positioning, and release.

Inspect the horn, anvil, trigger, and any automatic cycle. Pinch points can appear small, yet fingers may enter them during routine adjustments. Check whether the machine prevents unexpected activation after power returns. A guarded trigger, stable handle, and clear emergency stop deserve practical testing, not only brochure review. Noise measurements should be taken at the operator’s ear, especially during repeated welding cycles. The International Labour Organization reported nearly 3 million work-related deaths and 395 million non-fatal injuries worldwide in its 2023 estimates. That scale makes small daily exposures worth recording.

Use ISO 12100’s hierarchy: eliminate hazards where possible, add engineering controls, then provide instructions and personal protective equipment. Gloves may complicate trigger control, so test them with the actual workpiece. Operators should see the weld area without leaning toward the horn. Training must cover jam clearing, cleaning, horn replacement, and abnormal vibration. Keep records of near misses and maintenance findings.

The review may expose uncomfortable gaps. A familiar machine can still hide a poor grip angle. A quiet workshop can still contain harmful peaks. Get an independent safety review when measurements remain uncertain.

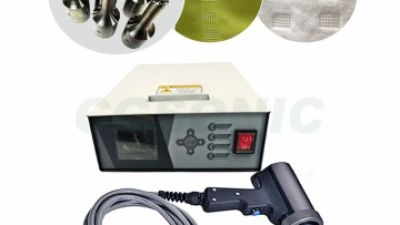

Ultrasonic Handheld Spot Welding Systems: Insights from Grand View Research’s Welding Equipment Market Report

Ultrasonic handheld spot welding systems are gaining attention as manufacturers seek faster, cleaner, and more adaptable joining solutions. Grand View Research’s Welding Equipment Market Report indicates that the global welding equipment market is projected to expand at an annual rate of approximately 5.8% through 2030, supported by automation, lightweight materials, and demand for efficient production. Within this trend, ultrasonic welding offers strong, stable joints without external heat sources, chemical adhesives, or lengthy curing periods.

A welding cycle can typically be completed in less than one second, helping improve throughput while reducing energy use and environmental impact. The resulting joints are firm, smooth, and resistant to external force, with good sealing performance and strength that can approach that of the original material. Compact construction, low weight, modular circuitry, and powerful output make handheld systems convenient for factory or on-site use. Interchangeable welding horns can accommodate different rivet sizes and product requirements. These systems support thermoplastic welding and riveting, metal-to-plastic insertion, edge pressing, and the processing of fabrics and films, including polyethylene, polypropylene, and polyvinyl chloride.

FAQS

What amplitude range is a practical starting point for ultrasonic welding?

Keep horn vibration around 10–60 μm as a starting range. Thin plastic parts usually need less amplitude. Thicker joints may need more energy. Check horn design, frequency, and material before adjusting settings.

Is amplitude the same as electrical power?

No. Amplitude describes horn movement, while electrical power is different. A displayed setting may not match actual vibration. Use calibrated measurement equipment when possible.

How should I begin testing amplitude?

Start near the lower setting. Make short welds and inspect them under consistent lighting. Check for weak bonding, whitening, flash, and surface marks. Small changes matter.

What should a clean weld look like?

The joint should hold firmly without excessive melting. It should show minimal whitening, flash, gaps, or surface marks. Inspect the seam closely, even when it looks acceptable.

Which welding settings should I change during testing?

Change only one setting at a time. Record amplitude, pressure, weld time, and part temperature. This makes results easier to compare. Guessing creates confusion.

What should I do if the horn marks the surface?

Lowering amplitude may help, but another correction could work better. Slightly longer weld time and steadier pressure sometimes reduce marking. Material batches can behave differently, so results may remain imperfect.

What cycle time should I expect from a handheld ultrasonic welding machine?

Typical cycles may fall between 0.1 and 1.0 seconds. This is only a reference range. Measure from trigger activation to horn release. Keep loading and unloading time separate.

How can I verify realistic production speed?

Run at least 30 consecutive parts. Record every cycle with a timer or machine log. Test low, middle, and high settings. Include cooling pauses, rejects, repositioning, and rework. The fastest cycle may not be the best one.

Conclusion

Choosing the right Handheld Ultrasonic Welding Machine starts with understanding the application and material. Select a suitable operating frequency, such as 20, 30, 35, or 40 kHz, according to the material thickness, hardness, and joint design. Generator power commonly ranges from 500 to 2,000 W, so the rating should match the required weld strength and production demand. Amplitude must also be adjusted carefully, generally within about 10–60 μm, to achieve reliable bonding without damaging components.

Horn geometry is equally important, and accurate joint tolerances near ±0.05 mm can improve consistency. Evaluate typical cycle times of 0.1–1.0 seconds to confirm that the equipment fits your workflow. A practical system should monitor energy, force, amplitude, and weld time, allowing operators to identify variations quickly. Finally, review ergonomic features, guarding, and operating procedures through an ISO 12100-based risk assessment to support safe and controlled use.
