Pneumatic Welding Machine–IGW-P1 Series

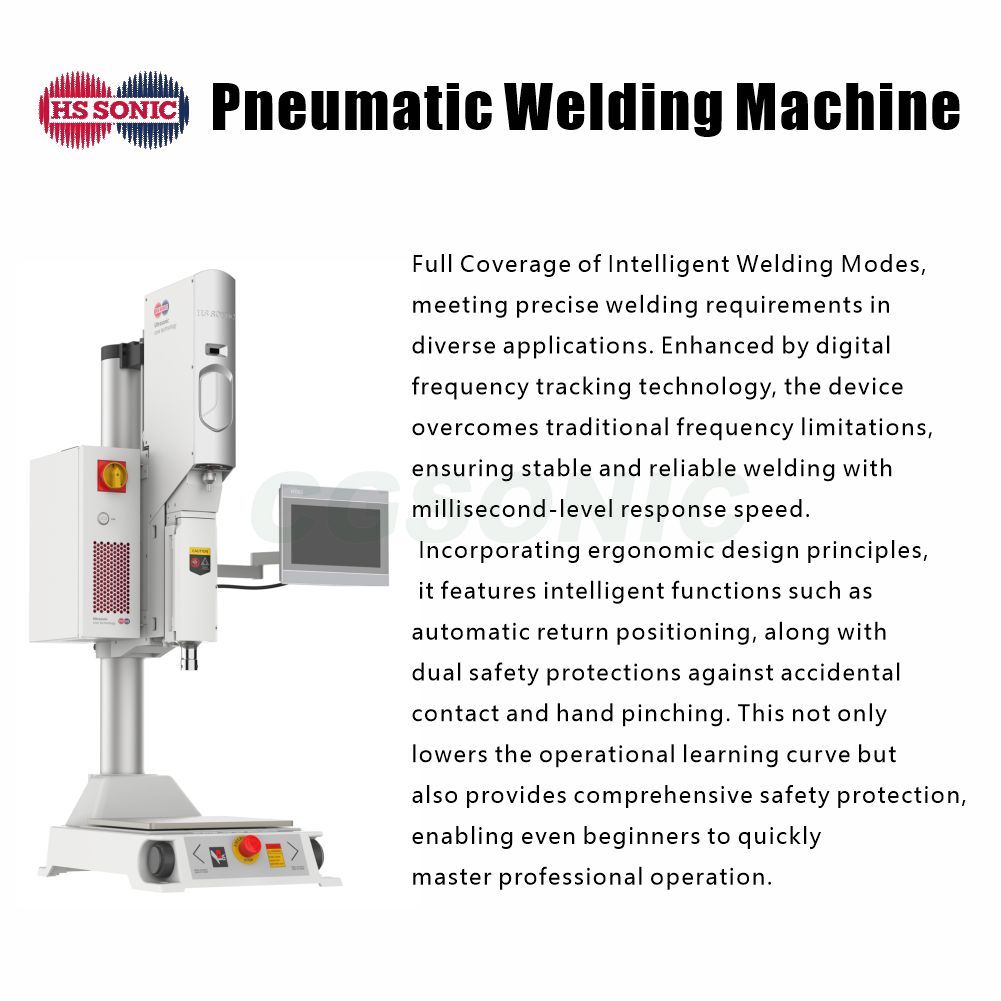

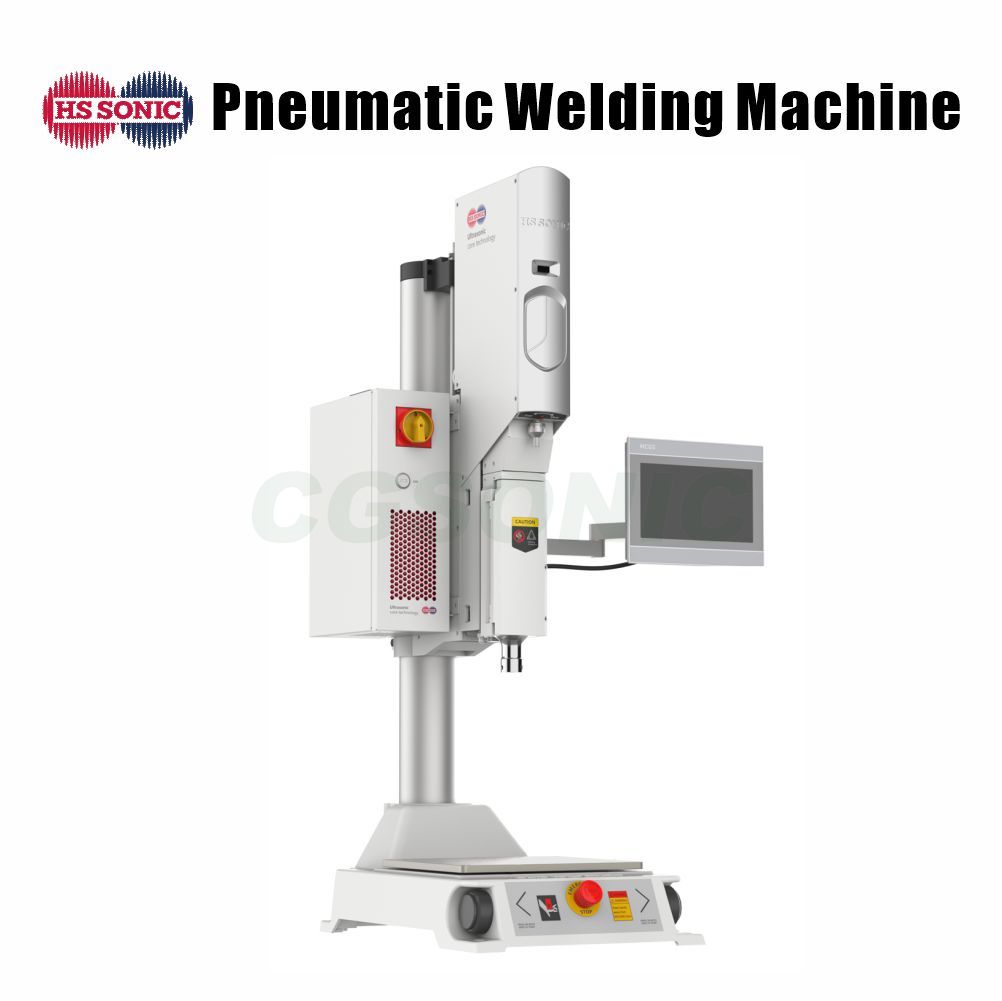

The IGW P1 series pneumatic ultrasonic welding machine is a precision, high-end ultrasonic welding model from the HS SONIC brand. This ultrasonic welding machine achieves full coverage of intelligent welding modes, meeting the precise ultrasonic welding needs of various working conditions in multiple industries, including plastics and composite materials.

The equipment is equipped with digital frequency tracking and tuning ultrasonic technology, which effectively solves the frequency drift problem commonly found in traditional ultrasonic welding equipment. With a millisecond-level response speed, it ensures stable output and reliable welding results throughout the ultrasonic welding process.

Core hardware and system characteristics

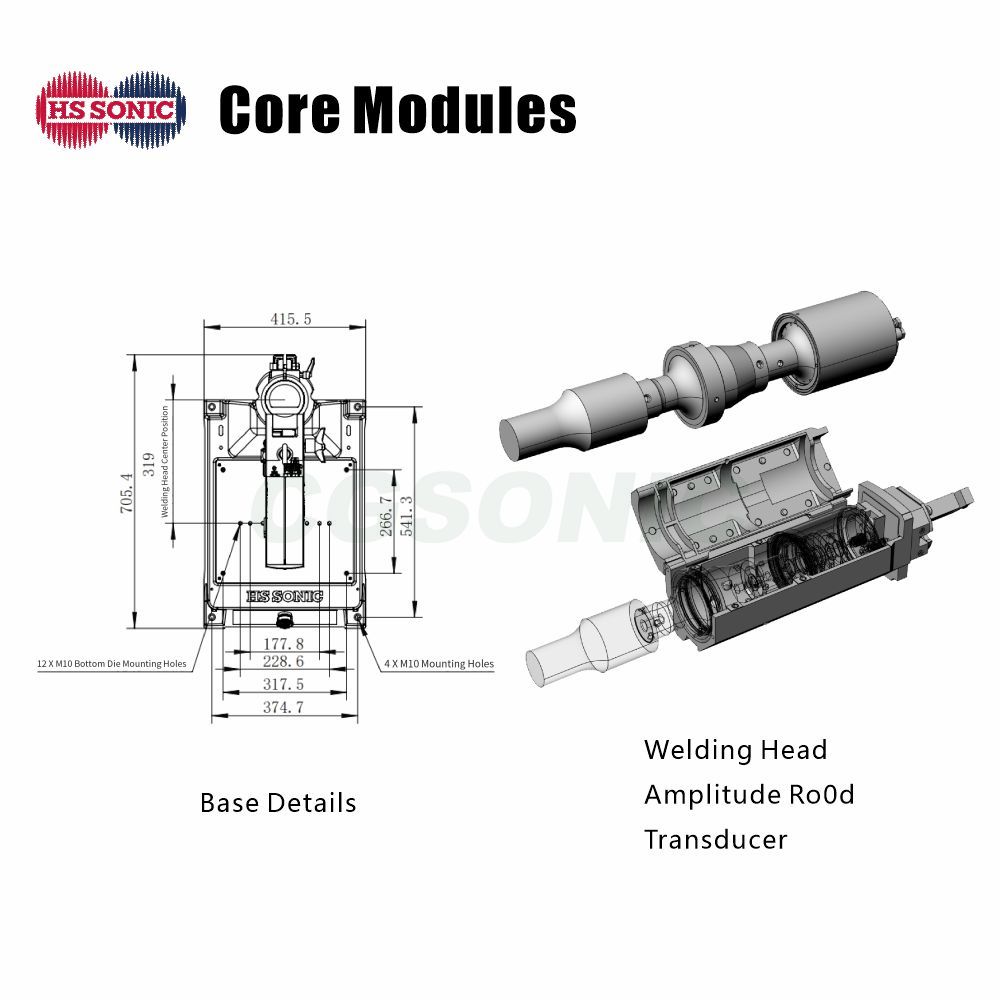

1. The complete ultrasonic acoustic triplet system consists of a transducer, amplitude modulator, and welding head, forming the core working unit for ultrasonic welding. It supports multiple frequency specifications of 15kHz/20kHz/30kHz/35kHz/40kHz, with standardized assembly torque parameters for each frequency to ensure efficient ultrasonic energy transmission. The equipment supports triplet impedance testing, enabling rapid determination of the vibration operating status of the transducer, amplitude modulator, and welding head, facilitating equipment debugging and fault prediction.

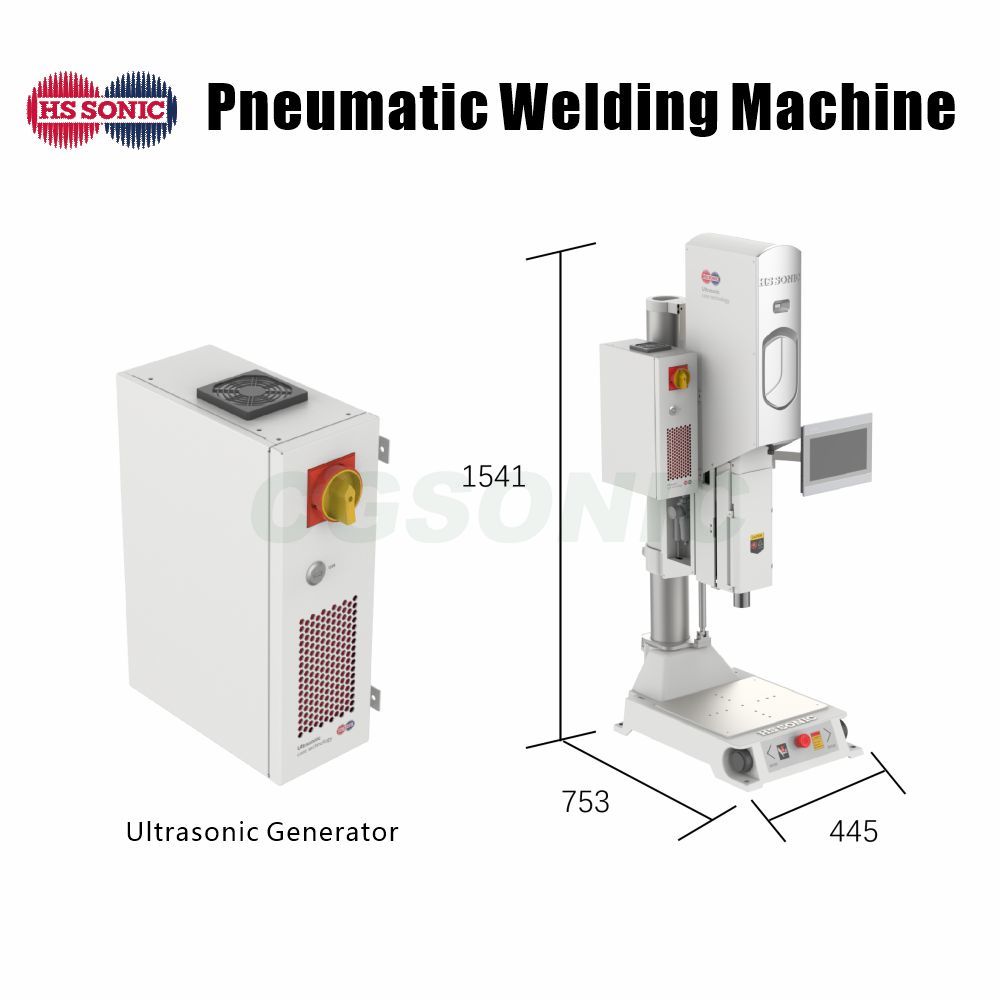

2. digital ultrasonic generator , features millisecond-level automatic frequency tracking and real-time impedance detection, compensating for frequency shifts caused by temperature and load fluctuations during long-term mass production. It employs an SHV BNNC high-voltage coaxial ultrasonic output connector, resisting electromagnetic interference and ensuring stable ultrasonic signal output.

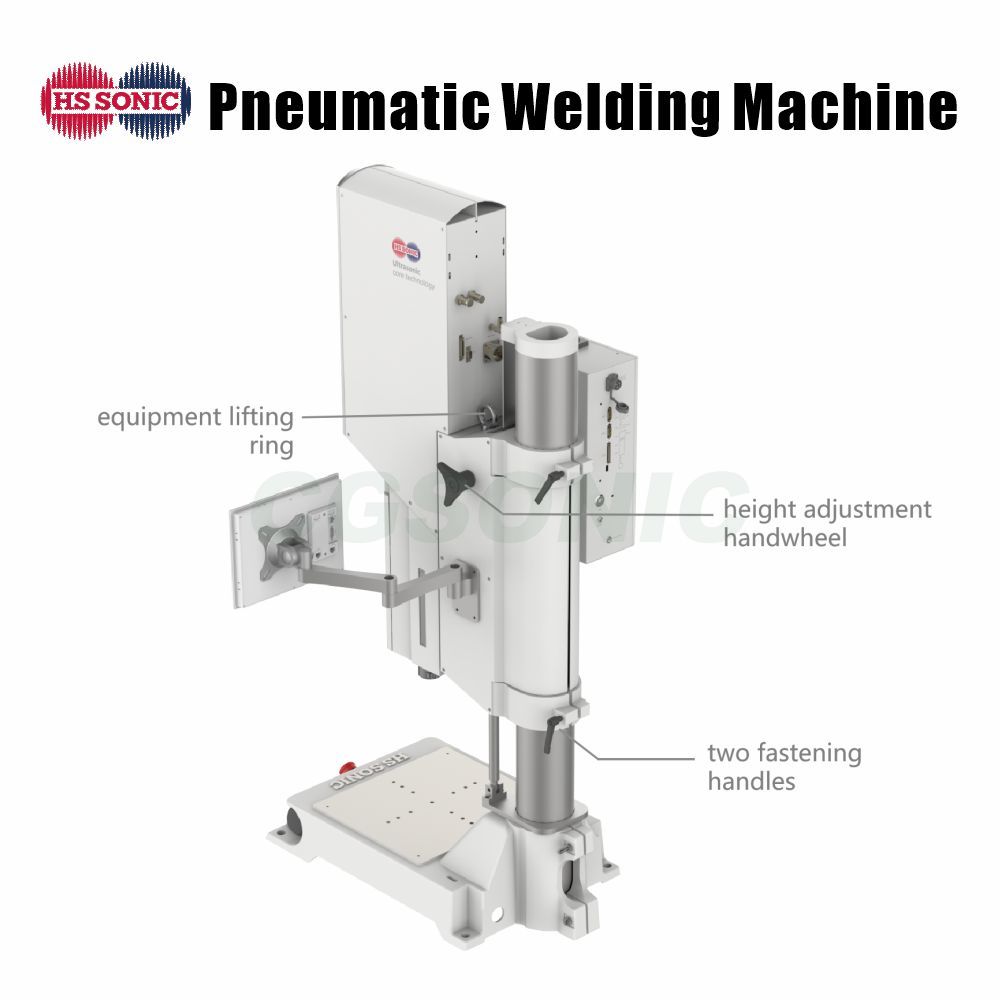

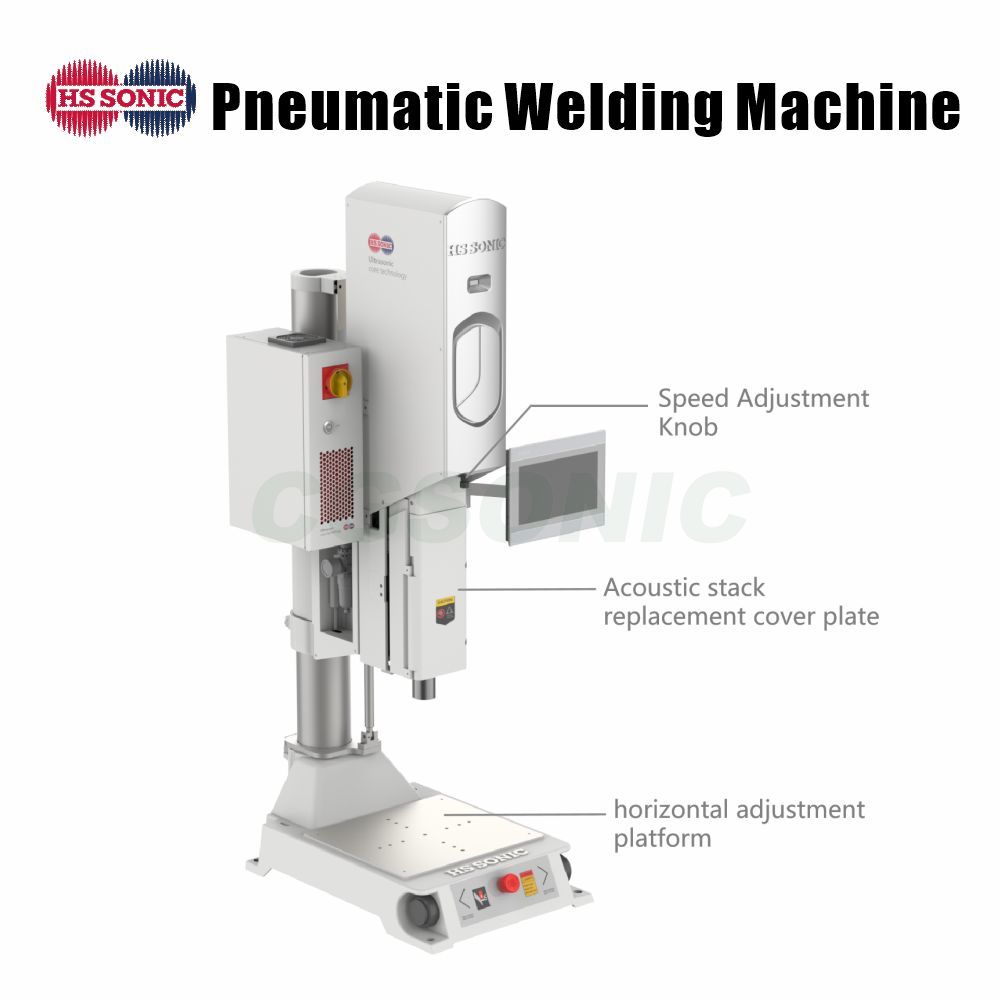

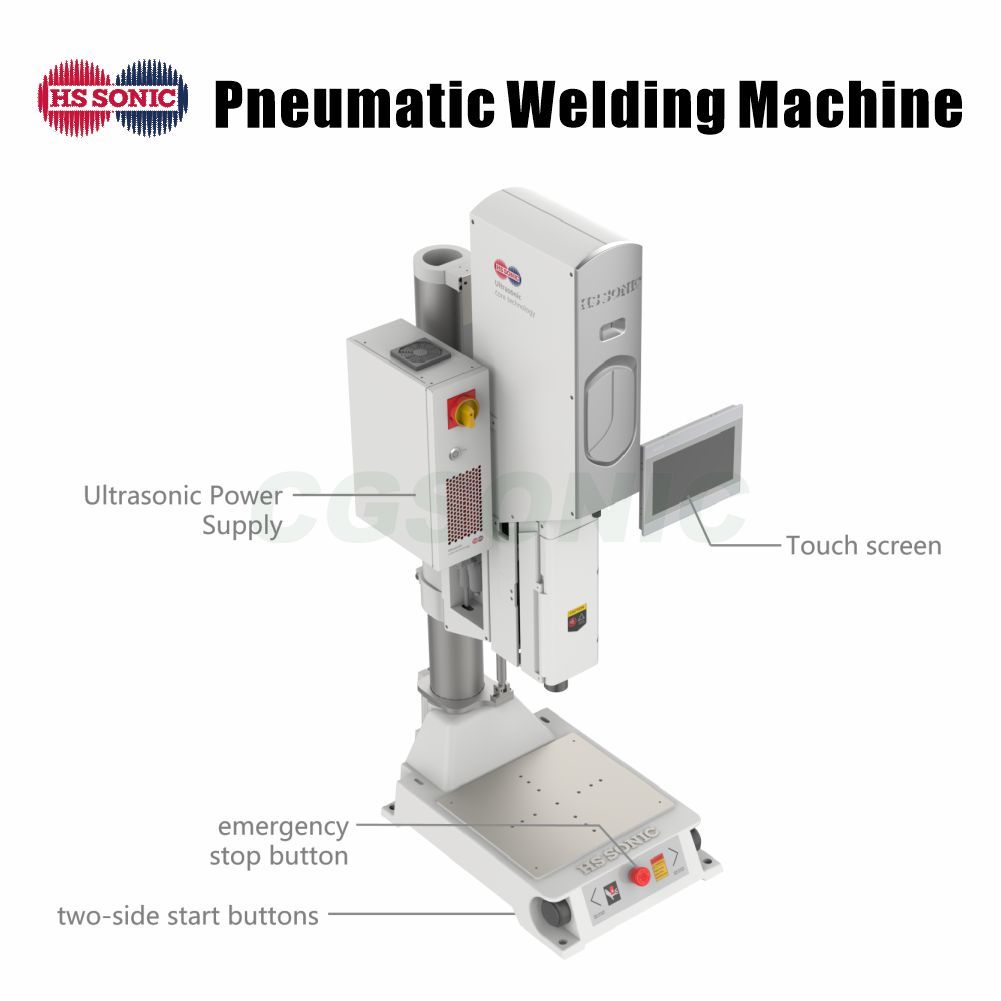

3. The pneumatic machine body structure and safety system feature a high-rigidity cast iron base with an adjustable horizontal base plate to accommodate various fixtures and tooling. It is equipped with a dual-cycle start/stop switch and an emergency stop (E STOP) safety circuit, complying with industrial safety standards. A lock/tag (LOTO) power-off protection mechanism ensures personal safety during equipment maintenance. The pneumatic drive structure includes a speed control knob to adjust the downward speed of the welding head. The machine has a pre-absolute distance positioning function, allowing for controlled ultrasonic output before the welding head contacts the workpiece, mitigating the risk of dry-firing.
4. a rich set of welding process modes, supporting various welding processes such as time mode, energy mode, distance mode, and peak power. It is compatible with a variety of ultrasonic processing techniques, including plastic welding, nut insertion, and hot riveting. It can record and store multiple sets of welding process parameters, facilitating quick switching and recall for different products.
5. The comprehensive maintenance and fault diagnosis manual provides complete guidelines for the disassembly and assembly of acoustic triple units, contact surface repair, torque standards, and periodic maintenance. It also includes detailed troubleshooting solutions, providing cause analysis and corresponding solutions for common ultrasonic welding defects such as overflow, incomplete welding, welding misalignment, poor hot riveting, and nut insertion failure, making it easier for field engineers to quickly locate problems.
