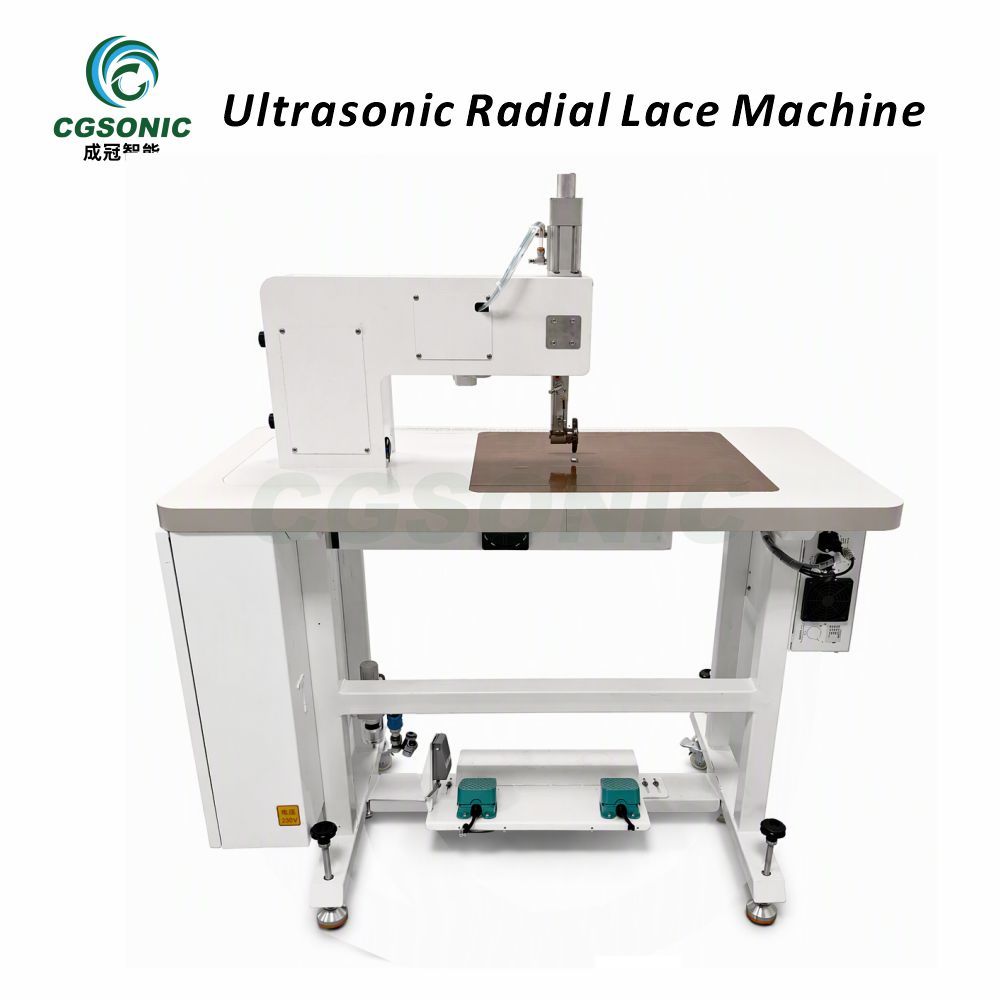

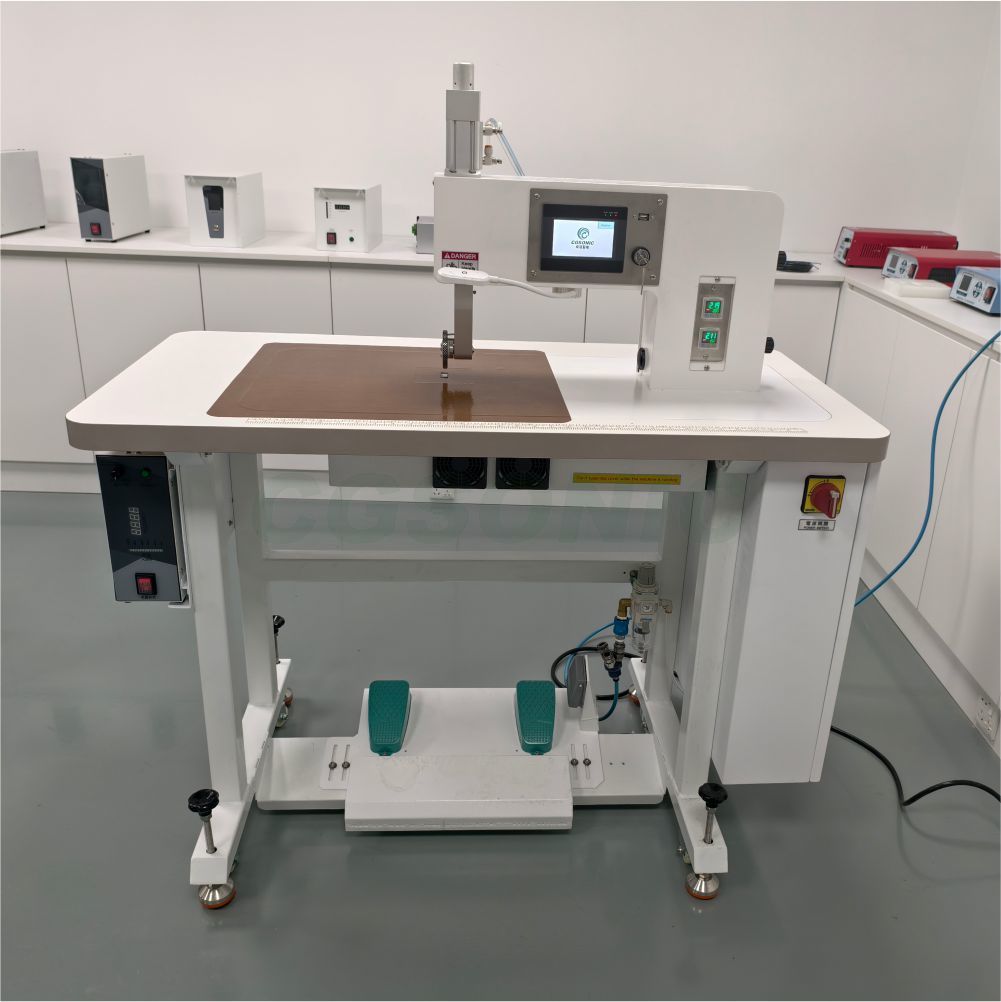

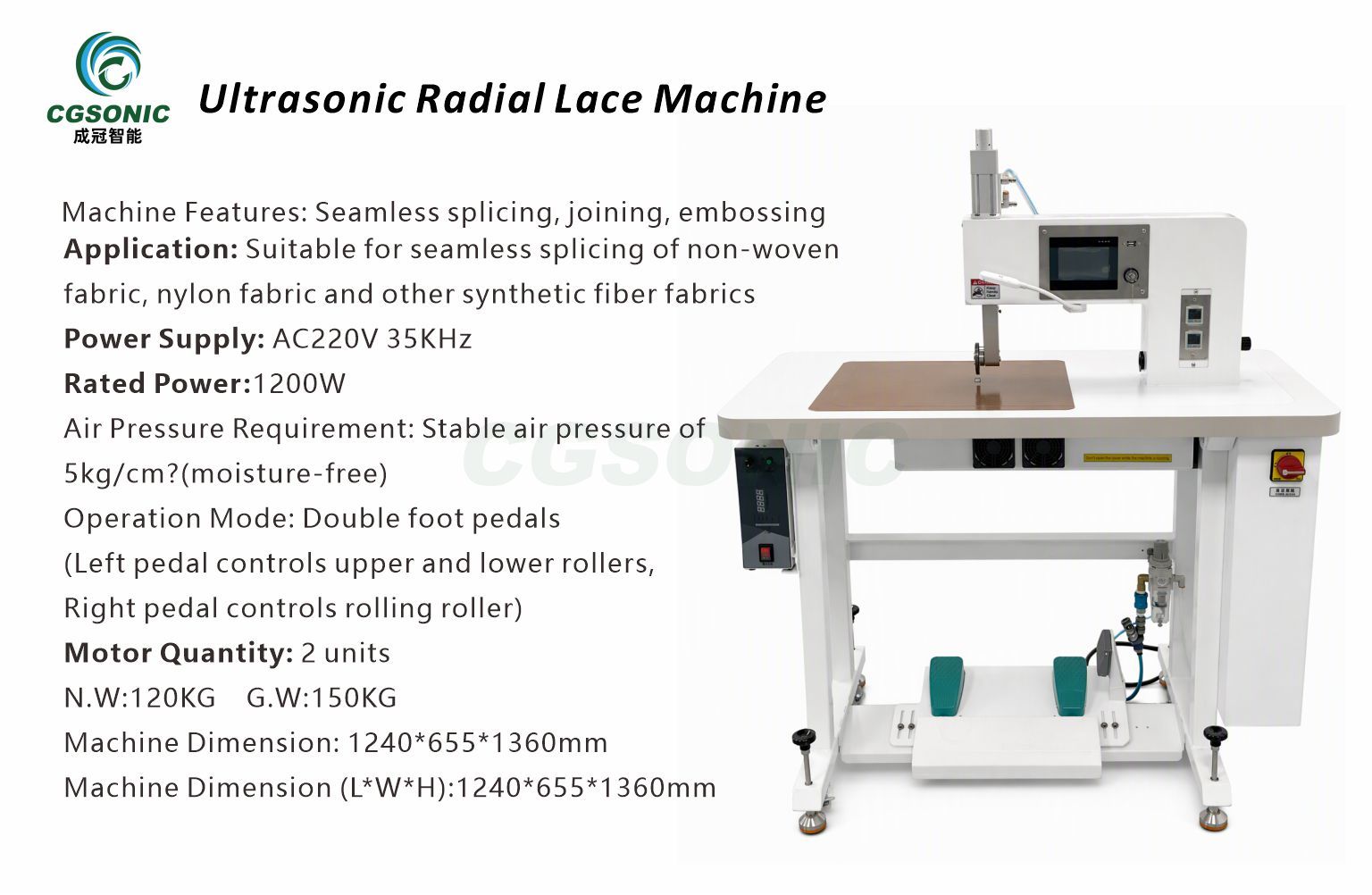

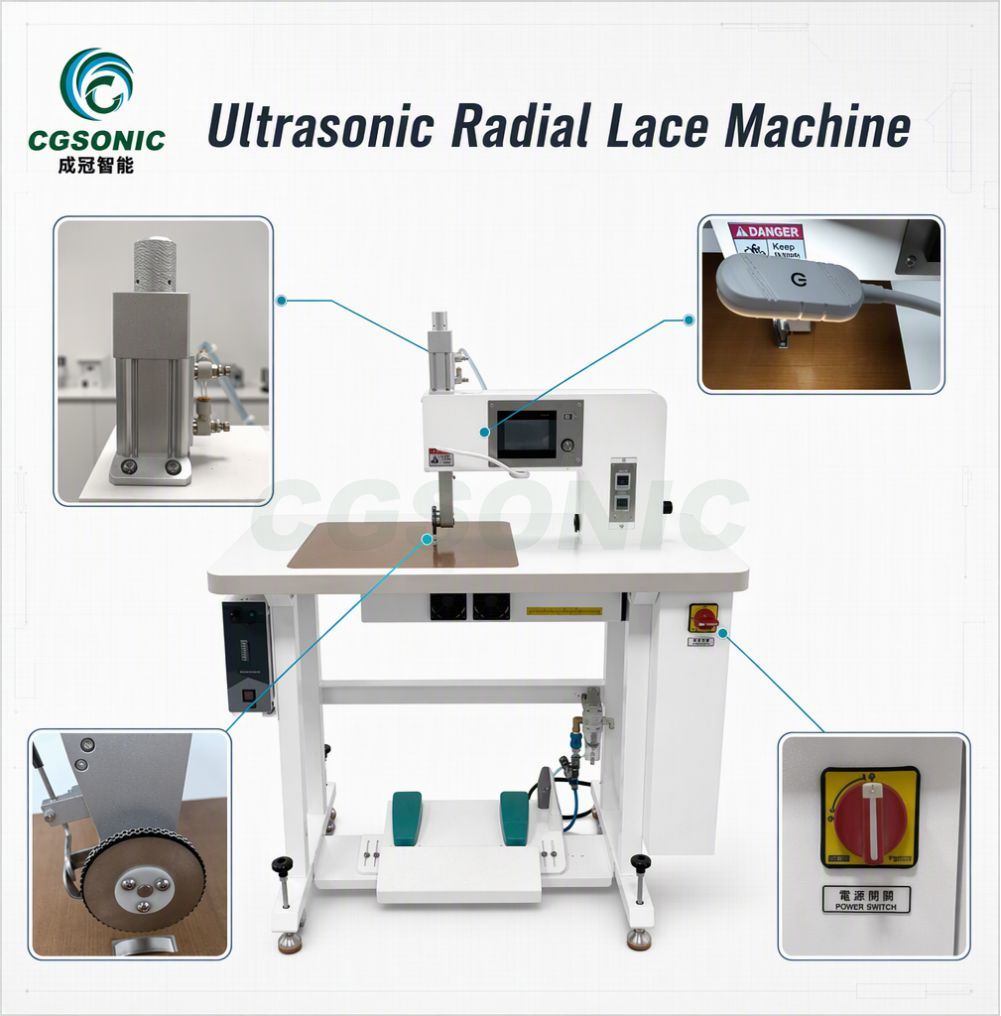

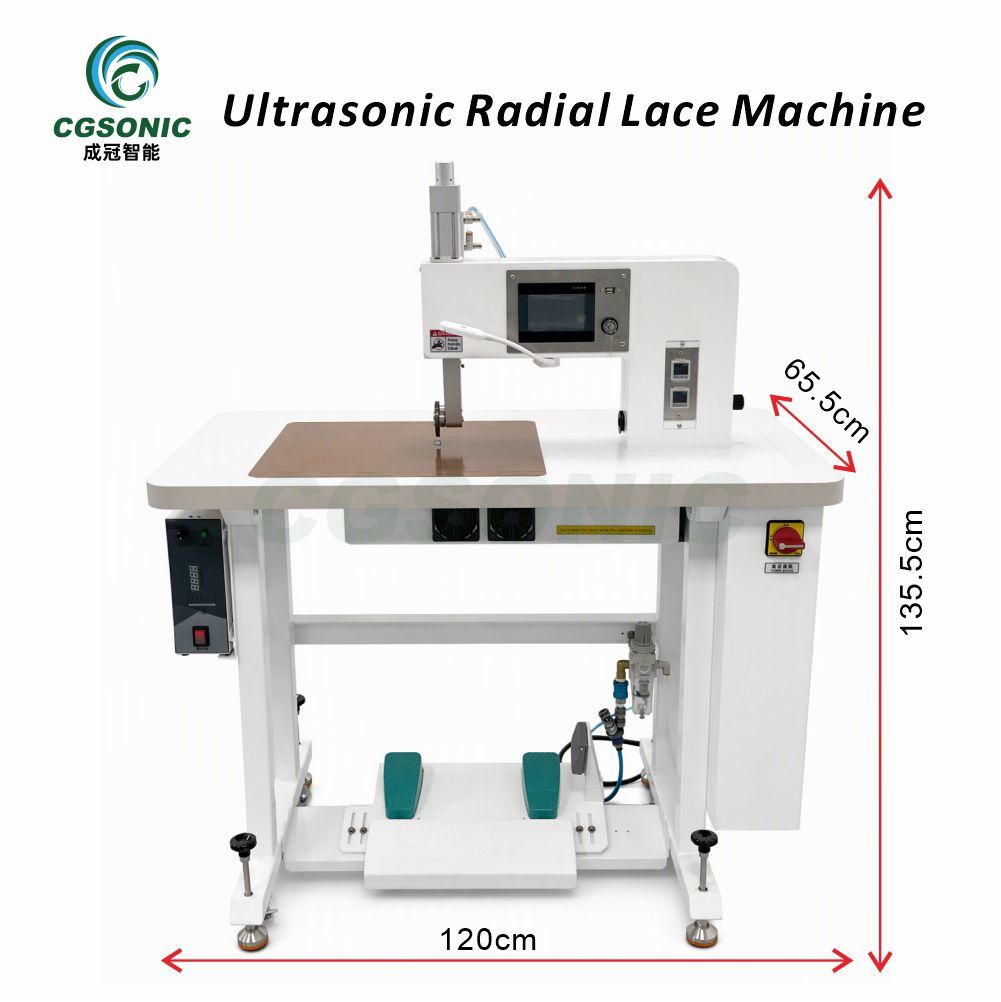

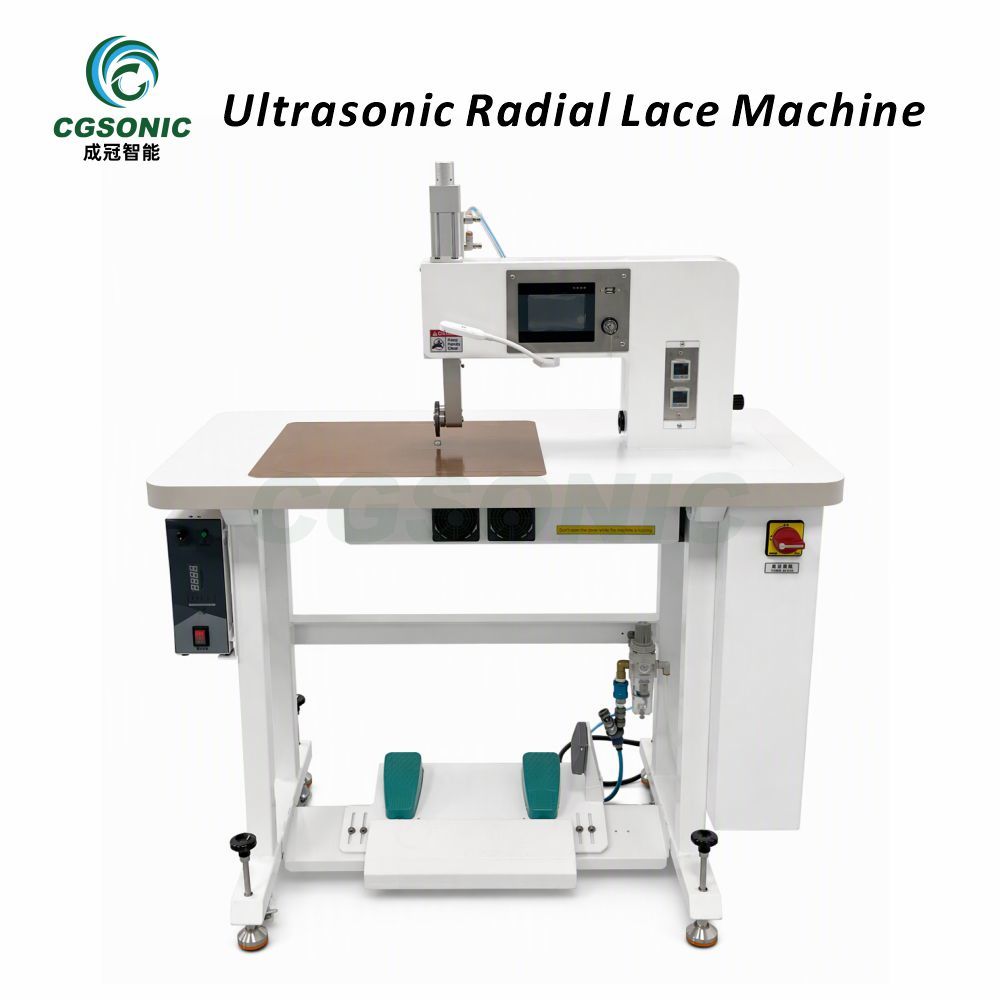

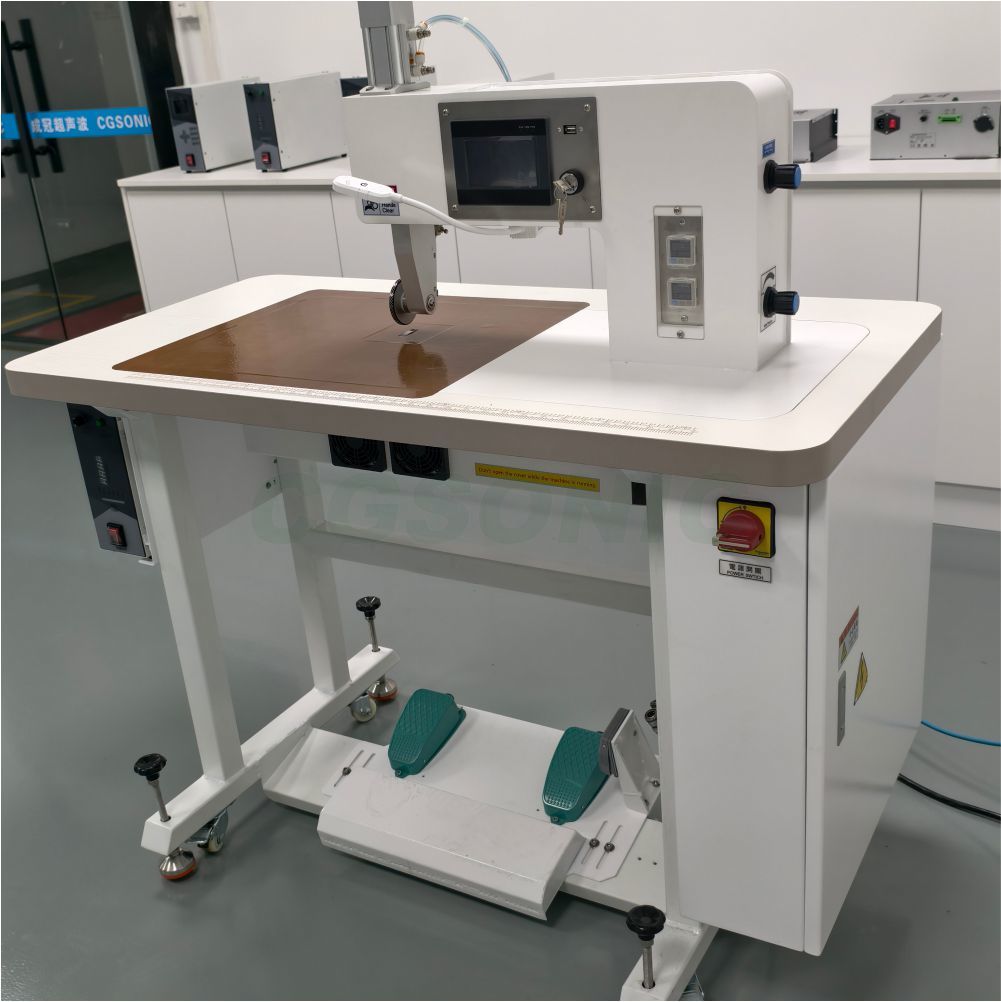

Ultrasonic Radial Lace Machine

Traditional sewing machines bind fabric edges with needle and thread. On thermoplastic textiles — nonwoven fabric, PP/PE woven cloth, nylon, polyester — this approach has three built-in problems: stitching perforates the fabric and weakens the edge, threads break and skip on high-speed runs, and cut edges fray after washing. The ultrasonic radial lace machine solves all three at once: high-frequency vibration melts and fuses the fabric edge under the pattern roller, sealing, cutting and embossing in one continuous pass. The result is a watertight, fray-free edge with decorative lace pattern — and no sewing thread consumable cost at all.
The word "radial" refers to the working method: the pattern roller (flower wheel) rotates radially against the ultrasonic horn, so the fabric is fed continuously and the lace pattern is embossed evenly across the full working width. Compared with flat-plate ultrasonic welding, this continuous rotary process gives higher throughput, uniform pattern repeat and unlimited fabric length — ideal for mass production of lace trimming, elastic edges and decorative bands.

Q1: What fabrics and materials can the ultrasonic radial lace machine process?

A: It works on any thermoplastic textile: nonwoven fabric (PP, PET spunbond, meltblown), PP/PE woven and laminated fabric, nylon, polyester, synthetic film-composite fabric, elastic bands and gift ribbons. Natural fibers that cannot be heat-sealed (pure cotton, linen, silk, wool) are not suitable. If unsure, send us a sample — we test it free of charge and send back a sealing report and video before you order.

Q2: Can the lace pattern roller be customized? How do I get my own design?

A: Yes. The pattern roller (flower wheel) is customized per product: we machine the roller to your lace drawing or reference sample, including pattern pitch, tooth profile and roller width, which also sets the machine's working width. Send us your design file or a physical sample of the lace you want to replicate — our engineers confirm feasibility, make the roller, and run a free sample test on your fabric before shipment. Different rollers can be exchanged on the same machine to produce different patterns.

Q3:  What is the difference between an ultrasonic lace machine and a traditional sewing machine?

A: A sewing machine binds the edge with needle and thread — it perforates the fabric, breaks threads at high speed and leaves cut edges that fray after washing. The ultrasonic lace machine fuses the fabric edge itself with high-frequency vibration: cut, seal and emboss happen in one pass, the edge is watertight and fray-free, and there is no thread consumable cost at all. It is also far easier to operate — foot-pedal control that new operators learn in minutes, versus skilled sewing labor that is increasingly hard to hire. For disposable medical fabric and hygiene products, the sealed, lint-free ultrasonic edge is the only acceptable standard.

Q4: What about warranty, after-sales support and OEM service?

A: Standard warranty is 12 months from B/L date, covering manufacturing defects. After-sales includes lifetime remote technical support via WhatsApp/email, video-call troubleshooting, and spare parts (rollers, horns, generators) supplied within 48 hours. For OEM/ODM projects we support custom machine color, logo, roller library development and parameter presets — tell us your product line and we build the machine around it.
