Ultrasonic Wire Harness Welding Machine | High-Precision & Efficient Welding Solution

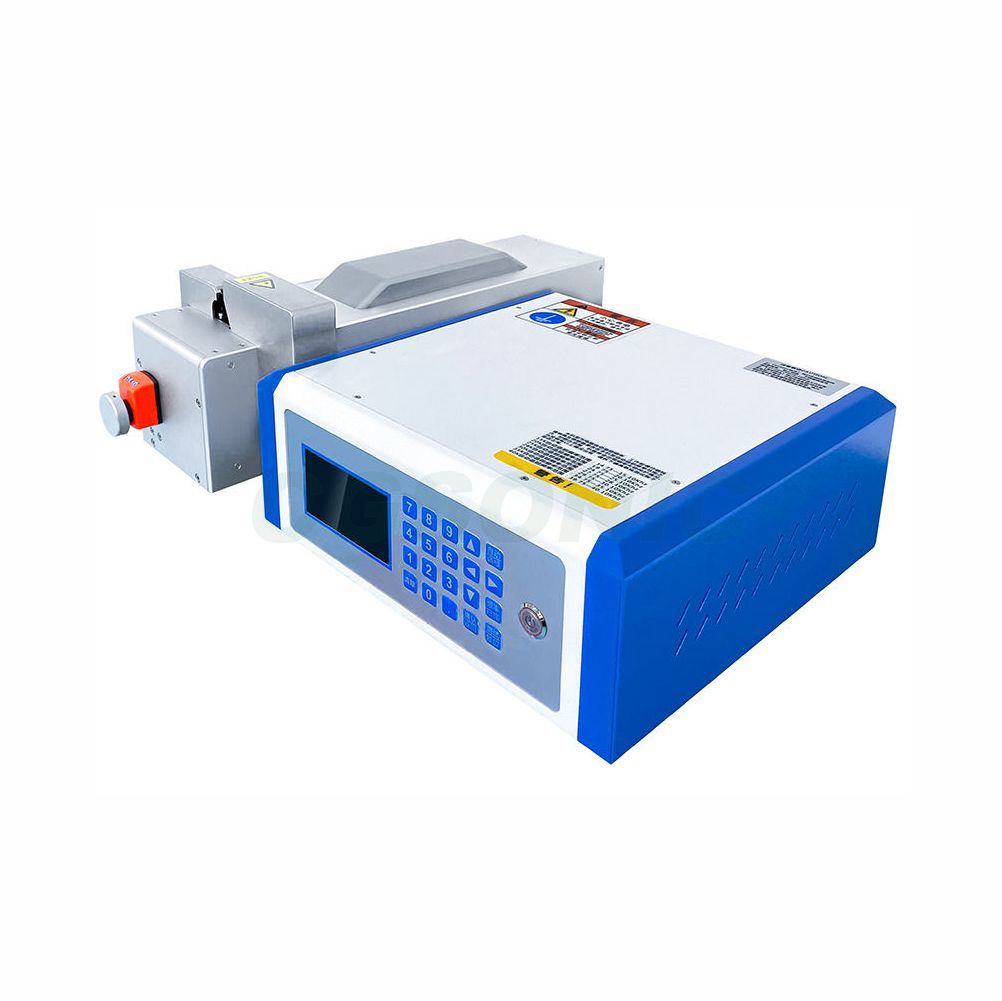

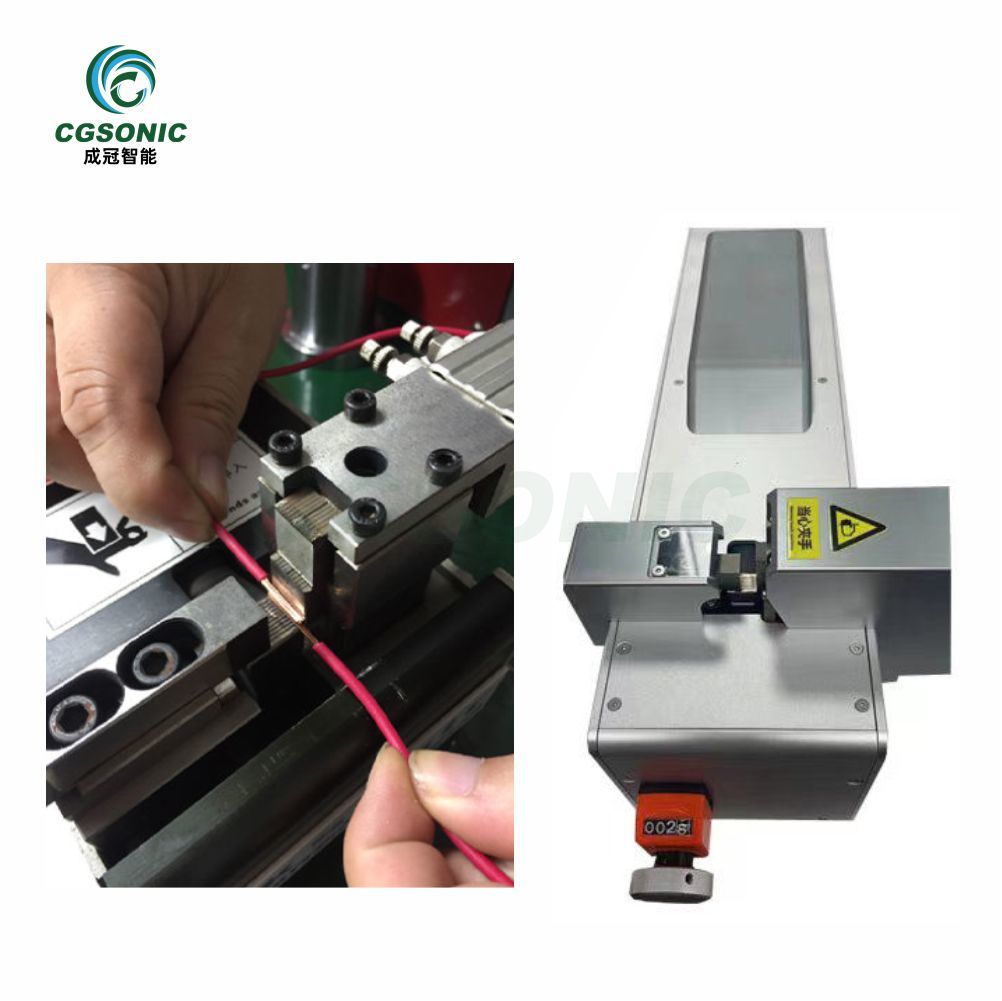

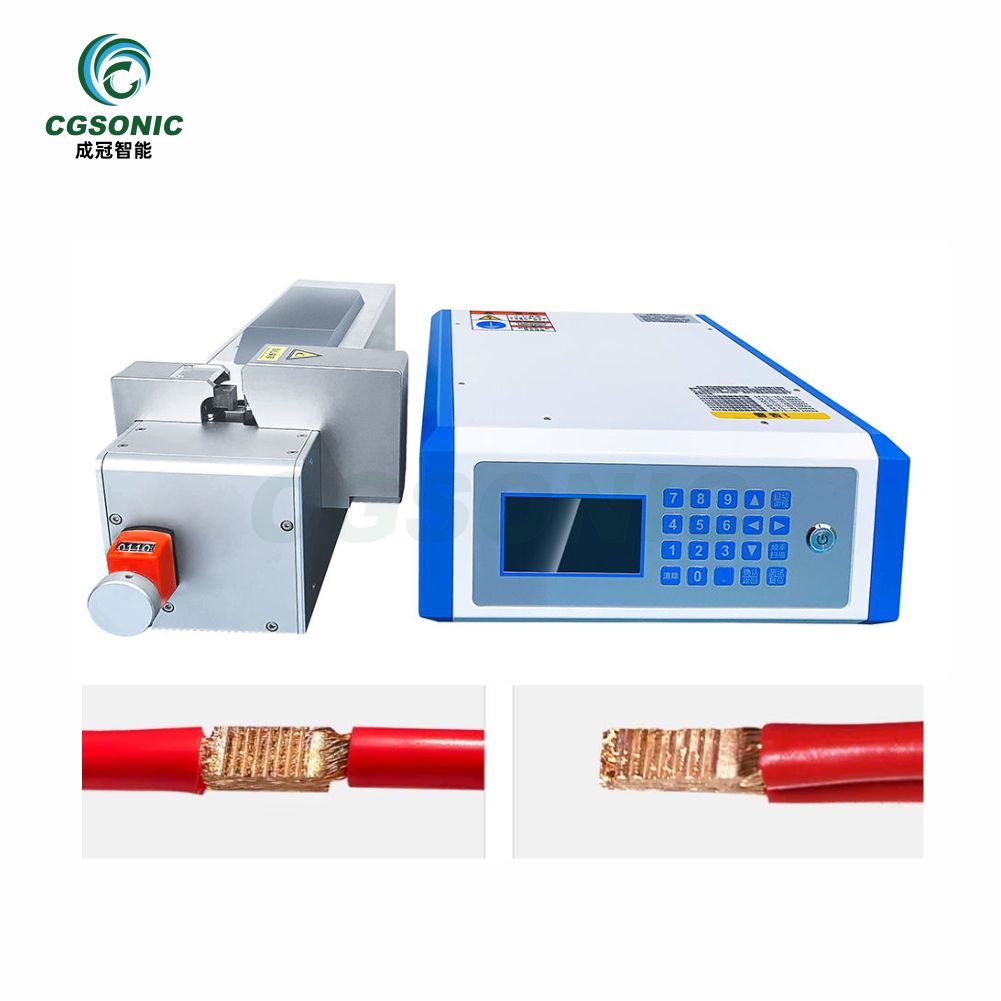

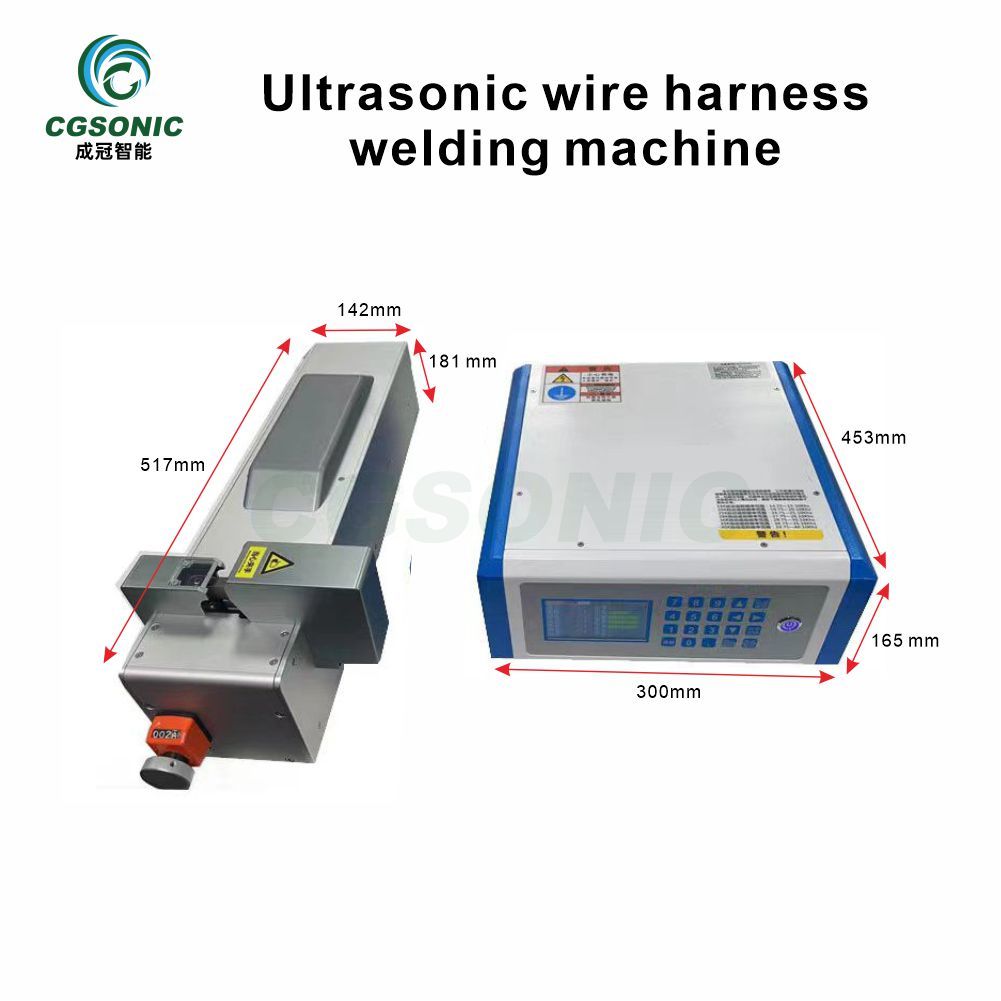

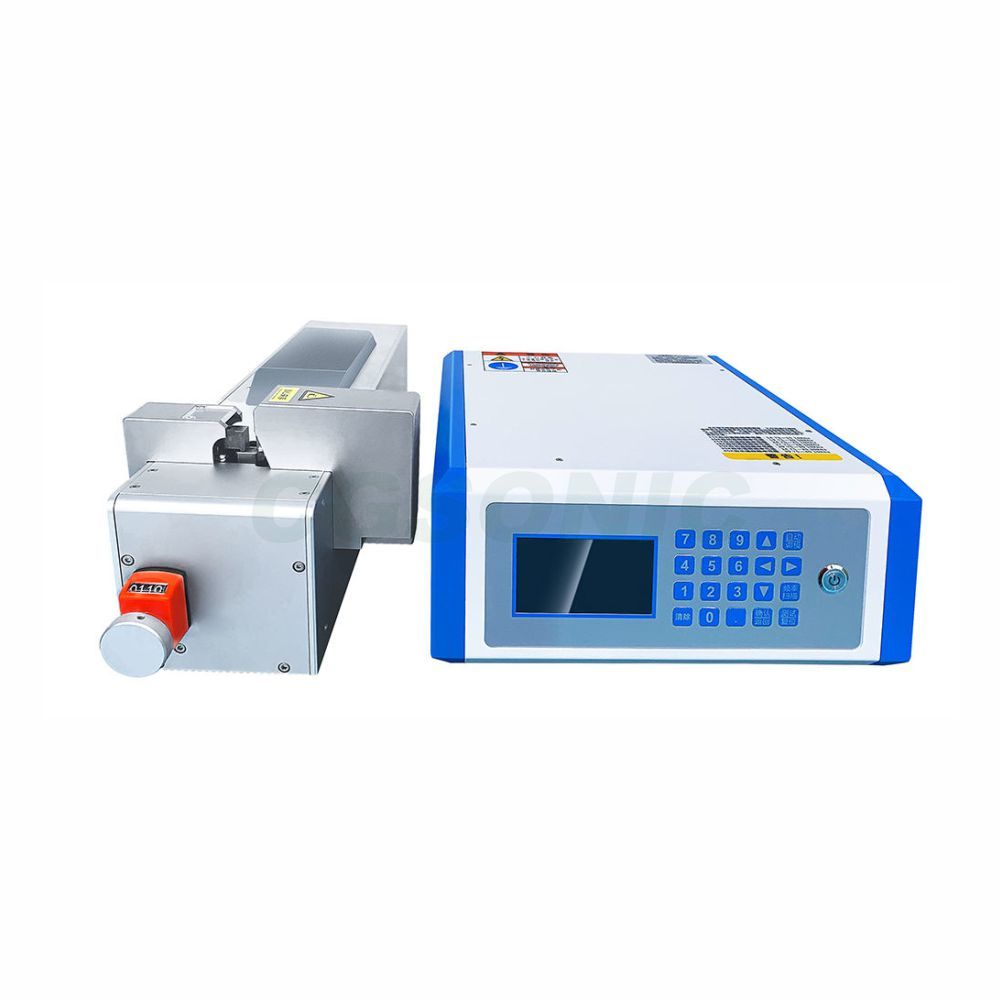

The Ultrasonic Wire Harness Welding Machine integrates digital ultrasonic generator, high-performance transducer and precision welding head, realizing modular design for easy expansion and maintenance. It supports flexible adjustment of welding frequency and pressure, and can be customized according to wire harness specifications and welding requirements, adapting to the welding of multi-strand twisted wires, braided wires and terminals. The equipment is available in desktop and floor-standing models, with a high-definition touch screen operation interface, which is intuitive and easy to learn, and ordinary operators can get started quickly after simple training. It is equipped with automatic frequency tracking, welding parameter storage and fault alarm functions, which ensures the consistency of batch production and reduces the risk of unqualified products. The detachable welding head design facilitates replacement and cleaning, and the wear-resistant welding die has a long service life, greatly reducing production and maintenance costs.

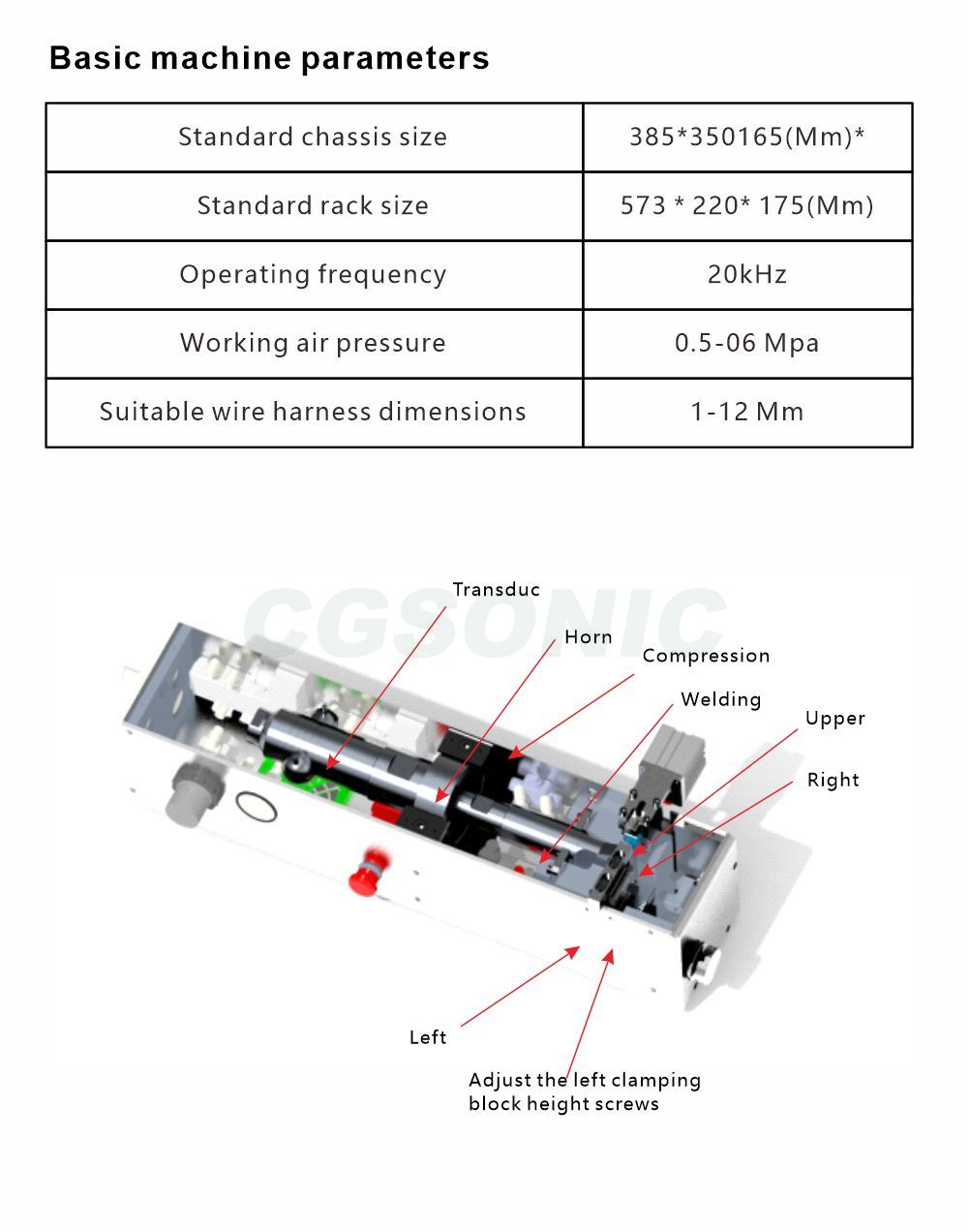

The core working principle of the Ultrasonic Wire Harness Welding Machine is to convert electrical energy into high-frequency mechanical vibration through a piezoelectric transducer, and transmit the vibration to the welding head through an amplitude transformer. When the welding head contacts the wire harness under a certain static pressure, high-frequency friction is generated between the surfaces of the metal wires, which removes surface oxides and activates metal atoms, making the metal molecules of the wire harness penetrate and fuse with each other under solid state to form a firm metallurgical bond. The whole welding process is a physical change, no current flows through the workpiece, no melting occurs, and the heat affected zone is extremely small, which can effectively protect the insulation layer of the wire and avoid damage to sensitive components. At the same time, the high-frequency vibration forms a clean welding surface without residues, ensuring the stability of electrical conductivity.

With strong adaptability, our Ultrasonic Wire Harness Welding Machine is widely used in global industrial manufacturing fields, focusing on high-demand industries such as automotive, electronic and energy storage, which is perfectly aligned with the search habits of European and American customers:

• Automotive Industry:Welding of new energy vehicle high-voltage wire harnesses, battery module tabs and bus bars, as well as wire connections for engine compartment, body and electronic control systems, which is essential for ensuring the safety and stability of automotive electrical systems.
• Electronic & 3C Industry:Welding of internal wire harnesses of precision instruments, communication equipment, household appliances and 3C products, as well as welding of sensor and servo motor wire harnesses, meeting the requirements of miniaturization and high reliability of electronic products.

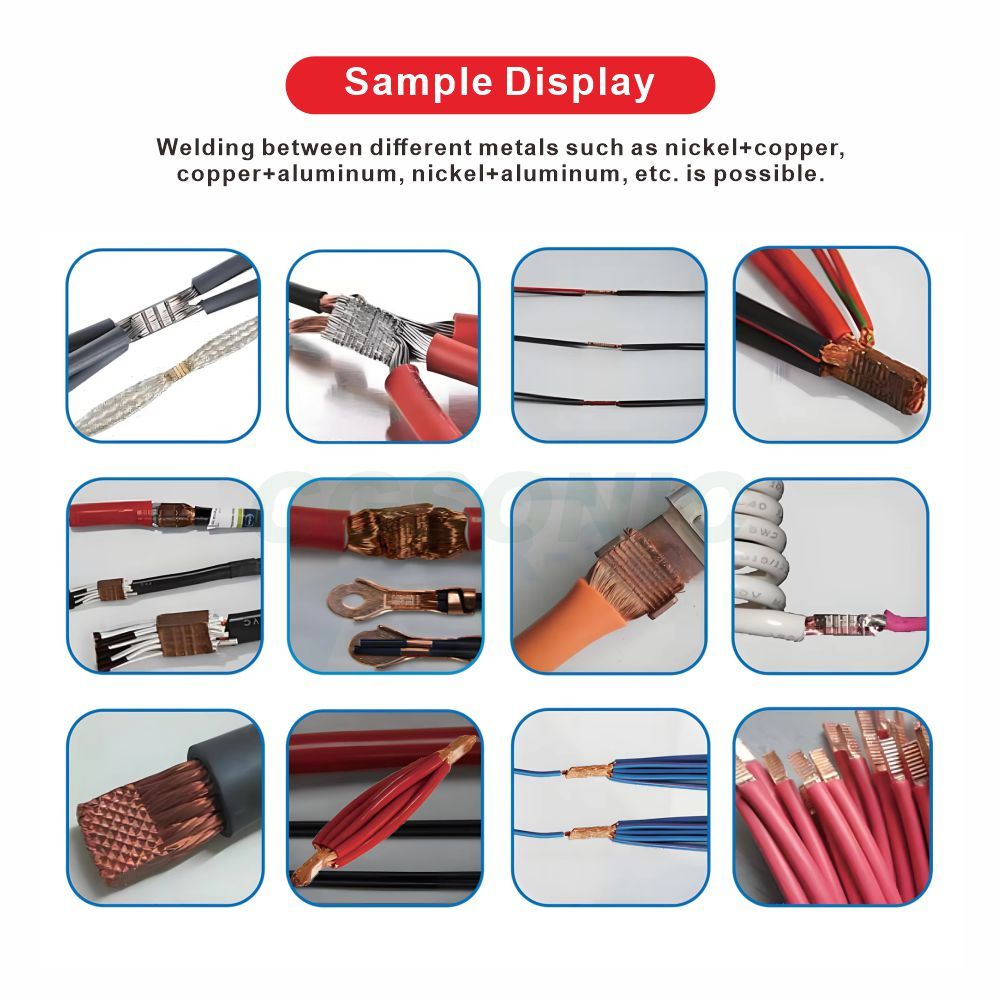

• Energy Storage Industry:Welding of wire harnesses for energy storage batteries, solar energy and wind energy equipment, realizing reliable connection of copper-aluminum dissimilar materials, and adapting to the high-demand scenario of energy storage system stability.
• Industrial Equipment Industry:Welding of internal electrical connections of industrial automation equipment, ensuring stable signal transmission and power supply of equipment, and improving the service life of equipment.

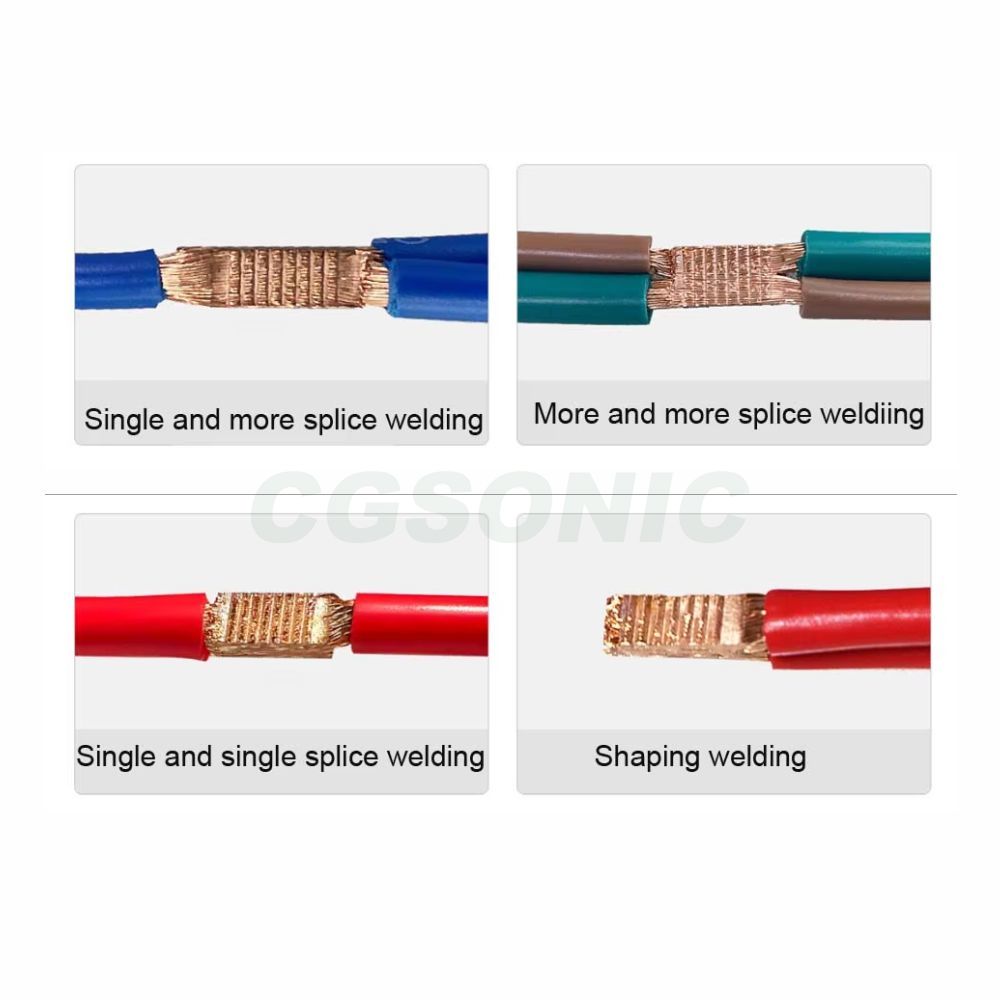

• Other Scenarios:Welding of wire harnesses for aerospace, medical equipment and military equipment, as well as wire end forming, wire mutual welding and multi-wire parallel welding, meeting the strict quality requirements of high-end industries.
